ABC 3 Layers HDPE/PP Pipe Making Machine For HDPE Water Supply Pipe 110-350mm

Name: ABC 3 Layers HDPEPP Pipe Making Machine For HDPE Water Supply Pipe 110350mm
Brand: SINO-HOLYSON
Price: 115 USD

Wholesale ABC 3 Layers HDPE/PP Pipe Making Machine For HDPE Water Supply Pipe 110-350mm from china suppliers

Place of Origin : Shandong, China

Brand Name : SINO-HOLYSON

Certification : CE ISO9001

Packaging Details : FCL (Full Container Load) 20GP

Price : $115,000.00/sets

Condition : New

Plastic Processed : PP, HDPE

Application : PIPE, Flexible Tube

Screw Design : Single-screw

Screw Material : 38CrMoALA

Screw diameter (mm) : 90

Screw L/D Ratio : 36:1

Screw Speed (rpm) : 90 rpm

Showroom Location : None

Voltage : 380V 50HZ 3Phase(Customized)

Dimension(L*W*H) : 32mx2.5mx2.2m

Weight : 2000 KG

Warranty : 1 year, 12 months

Key Selling Points : Automatic

Applicable Industries : Manufacturing Plant

Video outgoing-inspection : Provided

Warranty of core components : 12 Months

Core Components : Bearing

Machinery Test Report : Provided

Color : Customized

Automatic Grade : Automatic

Power : 22kw

After-sales Service Provided : Online support

Marketing Type : New Product 2023

Contact Now

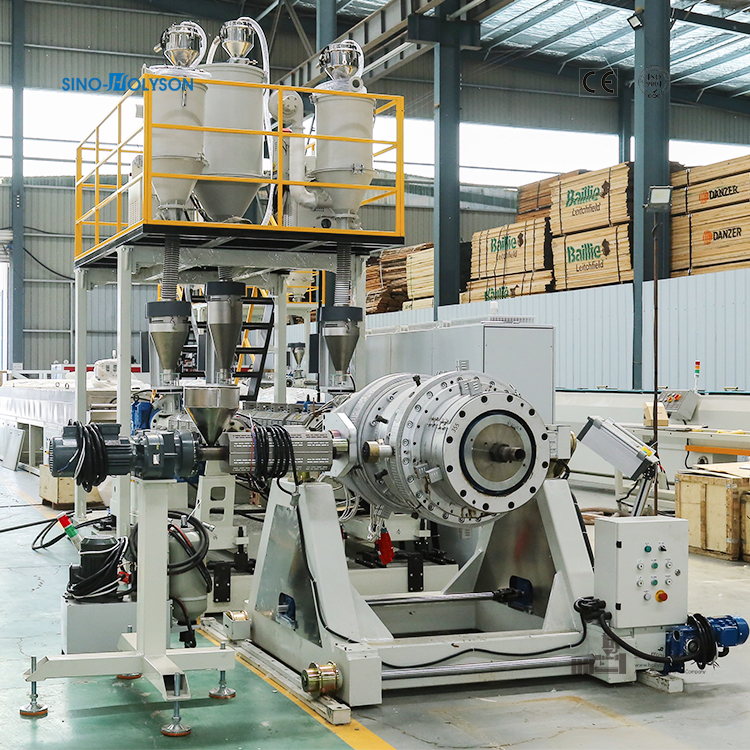

HSJ-65/38 ABC 3-Layers HDPE/PP Pipe Making Machine for HDPE Water Supply Pipe 110-350mm

Product Description

HSJ-65/38 HDPE/PP PLASTIC PIPE MAKING MACHINE

HIGHER SPEED Design

General Introduction:

This HSJ-65/38 HDPE/PP Plastic Pipe Making Machine

This machine is mainly designed for manufacturing HDPE/PP Pipes, which mainly used in irrigation, water supply; MPP Pipes, which mainly uses in electric cable. The extruder can process PP/HDPE granules(Both virgin and Recycled, even with chalk-filled composite). This Line is a HIGHER SPEED Design, output can reach like 400-600kg/hr.

MOULD SIZE: 110-350mm

110mm, 125mm, 150mm, 175mm, 200mm, 225mm, 250mm, 280mm, 300mm, 350mm totally 10 sizes.

The mounted mould on this line is 110-350mm, full set of mould will include every detailed sized mandrel and sizing sleeve.

	Standard Design		Higher Speed Design
1.	HSJ-75/36 Single Screw Extruder		HSJ-90/33 Single Screw Extruder	110kw
2.	HSJ-25 Marking Line Extruder		HSJ-30 Marking Line Extruder
3.	Mould		Mould
4.	Vacuum Cooling Water Tank		Vacuum Cooling Tank	8m
5.	Spraying Cooling Water Tank	1 Piece	Spraying Cooling Water Tank	2 Pieces
6.	3-Caterpillar Traction Machine		3-Caterpillar Traction Machine
7.	Non-Chips Cutting Machine
8.	Pipe Stacker	12m		12m

Detail Images

HSJ-65/38 Single Screw Extruder

HSJ-65/38mm Single Screw Extruder This Extruder is designed specially for processing PP/HDPE Granules, either Virgin Granules or recycled scraps. The Extruder installed with 110kw driving motor , according to the different pipe size, or thickness. Our SCREW is specially designed according to Chemical Characteristic of the granules. It has the advantages of high tenacity, high impact, good bending performance, high temperature resistance, etc.

HSJ-45/36mm Single Screw Extruder: 38CrMoAl, LD:36/1, Special Gradual Design

HDPE PIPES MOULD

Extrusion Mould: Size 110-350mm

Diameter: 75mm, 100mm, 125mm, 150(160)mm, 180mm, 200mm, 225mm, 250mm

ABA 3-Layer Mould

you can click here and switch to 3-Layer solutions.

ABA 3-Layers

Inner Layer: 10-15% Virgin

Middle Layer: 70-80% Recycled

Outer Layer: 10-15% Virgin

Mandrel:

Mould Mouth:

Pipe Stacker

Pipe Stacker This unit is mainly for pipes which cut into pieces, it holds and collects the pipe after the cutting machine. You can pack the pipe into bundles by straps.

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
